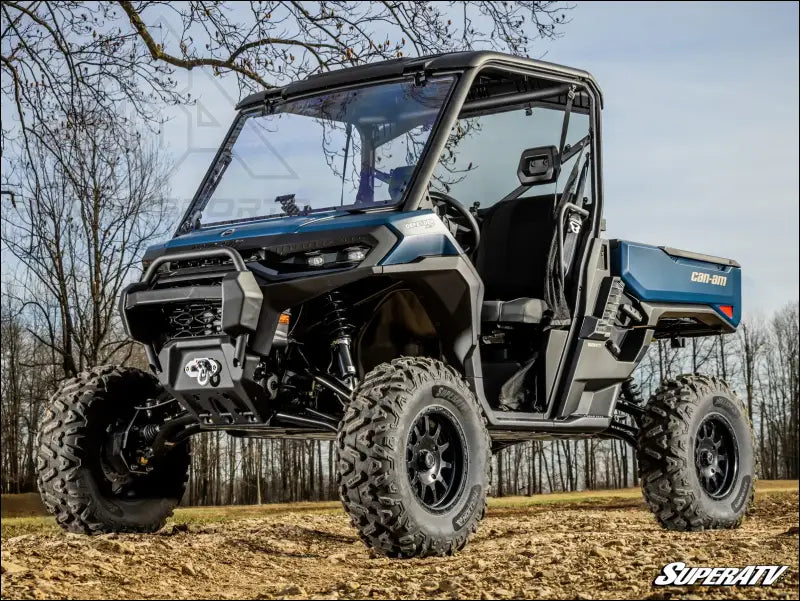

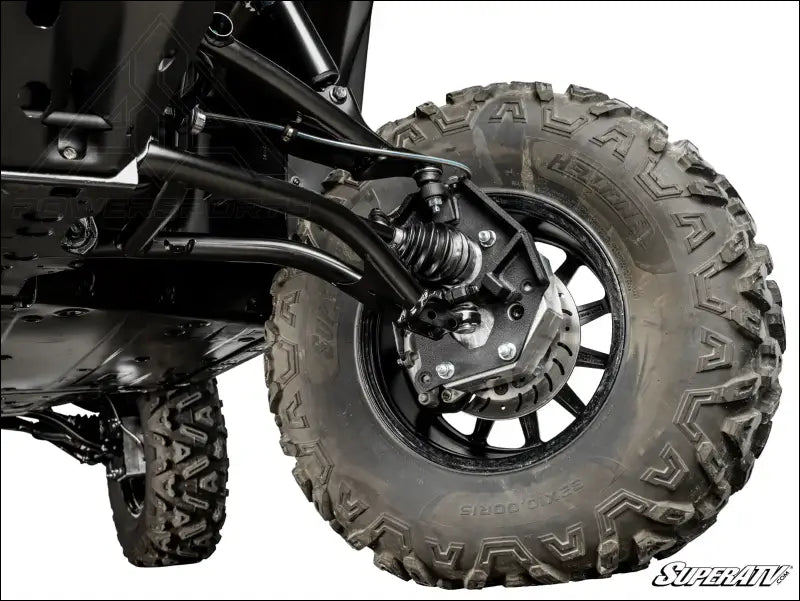

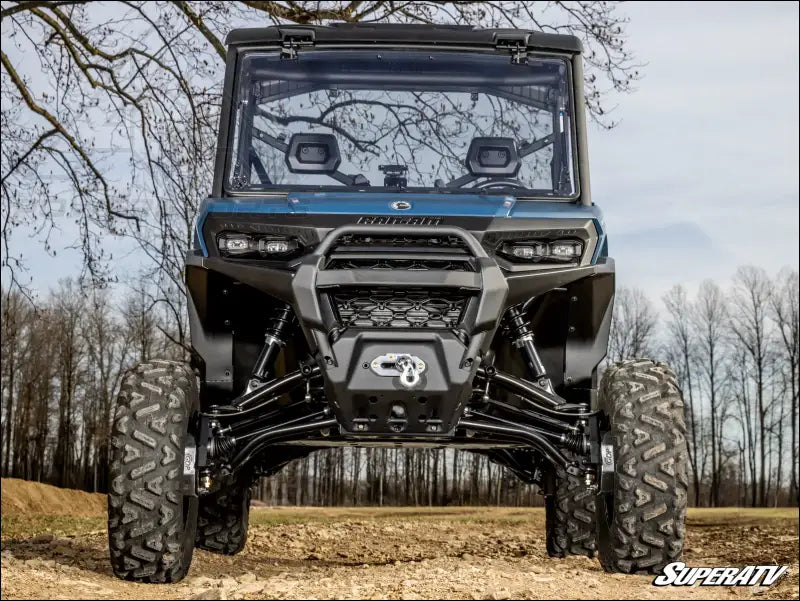

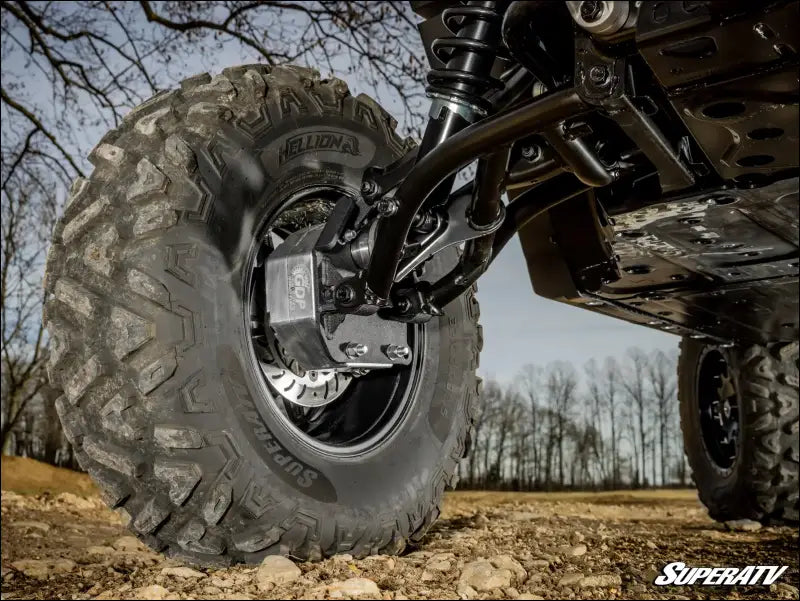

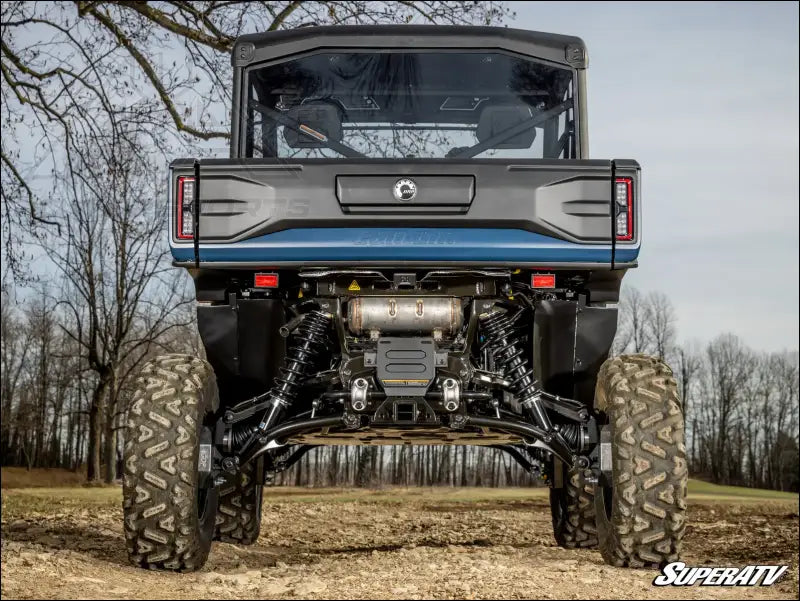

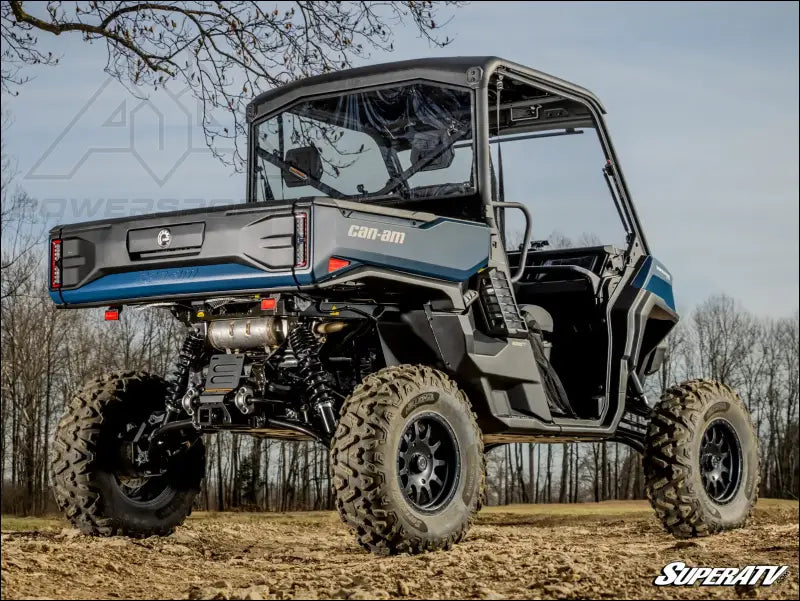

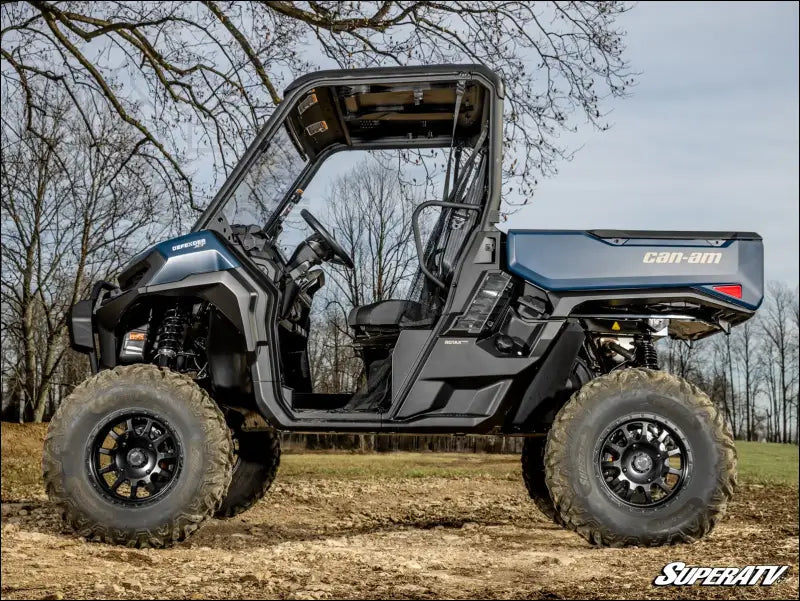

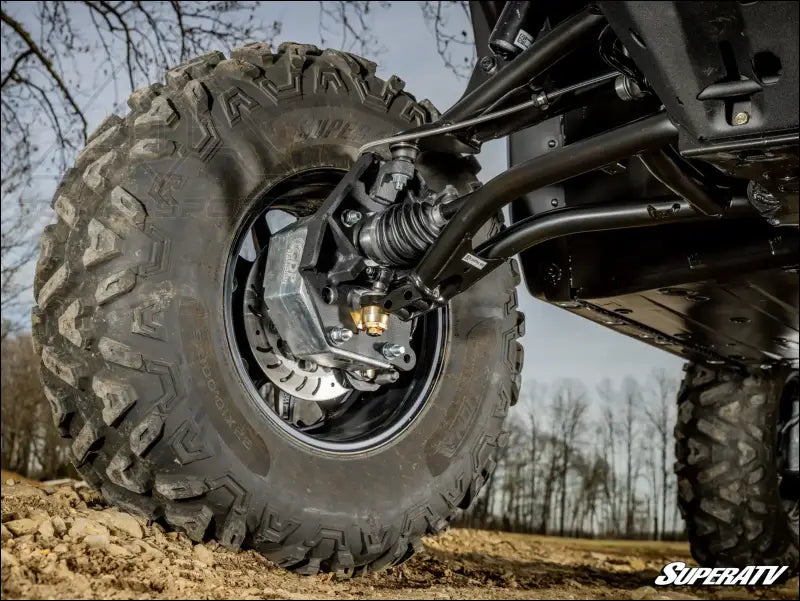

Can-Am Defender HD11 6" Portal Gear Lift

Take Your Defender HD11 to the Next Level with GDP Portals
SuperATV’s 6” Portal Gear Lift for the Can-Am Defender HD11 combines 6inches of lift with an integrated gear reduction for increased torque and ground clearance. It allows larger tires while reducing stress on the drivetrain. Gear reduction options include 30% or 45%, and the upgrade from cast to billet aluminum housing provides enhanced strength and durability for extreme conditions. These portals don’t just upgrade your ride—they transform it.

Built to Conquer the Trail
No matter where or how you ride, GDP Portal Gear Lifts deliver. Tear up dunes, dive into mud, fly through trails, or put your machine to work with confidence. Pick a 15% gear reduction for faster, more aggressive riding, or a 30% reduction for extreme torque and massive tires.

Your Drivetrain Stays Safe
By relocating the gear reduction to the wheel hub, GDP portals absorb much of the workload before it reaches the drivetrain. This design helps protect essential parts—axles, differentials, prop shafts, and transmissions—from unnecessary stress caused by having larger tires.

Built Tough with Aluminum and Steel
Our cast and billet aluminum housings are the thickest and strongest you can get. Combine that with 5/16” backing plates made from an advanced steel alloy, and our portals are unbeatable.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood—gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets, Seals, and Bearings
Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Top-Tier Customer Service
Got questions or want to double-check your choices? Our dedicated portal team is ready when you are. Give us a call and we’ll help you get exactly what you need.

6” Portal Gear Lift Includes:

• (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork® gaskets, and thrust bearings
• (4) Universal hubs and stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates
• (6) Steel sleeves
• (12) Bushings
• (4) Shims
• Extended brake lines
• All required hardware, including recessed castle nut socket
