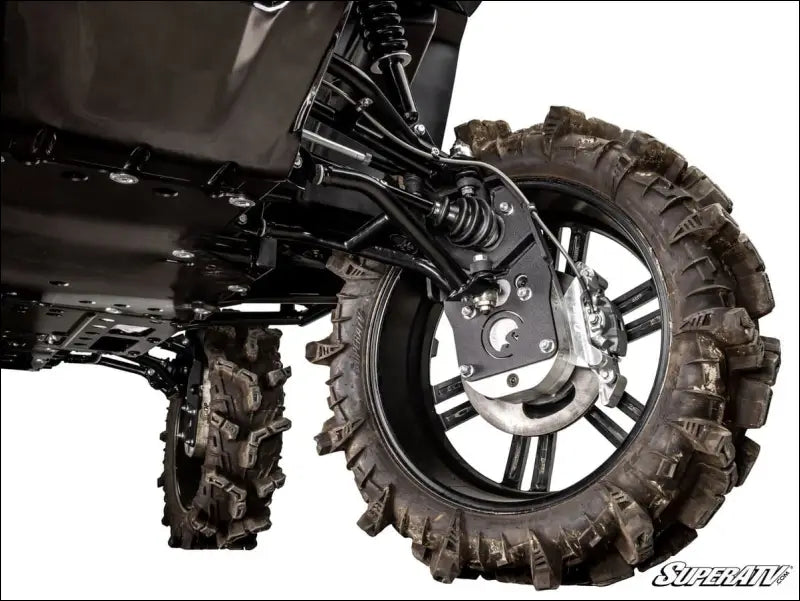

SuperATV '15+ Honda Pioneer 500 8" Portal Gear Lift

SuperATV '15+ Honda Pioneer 500 8" Portal Gear Lift

The Honda Pioneer 500 is an extremely capable machine—but that doesn’t mean it can do everything. Upgrade your rig with SuperATV’s Honda Pioneer 500 8” Portal Gear Lift from SuperATV. It gives you a gigantic lift kit and gear reduction in one powerful package. The 45% gear reduction gives you the torque you need to take on mud, creeks, trails, rocks—GDP Portals from SuperATV help you dominate all terrains.

• Gives you an 8” lift and a gear reduction in one package

• 45% gear reduction

• Maintains OEM suspension angles

45% Gear Reduction: A 45% gear reduction is extremely powerful. It provides the torque you need for tricky rock crawls, the muscle to turn gigantic tires, and the strength to dominate the deepest mud pits.

GDP Portals Save Your Drivetrain: Our Honda Pioneer 500 portals put the gear reduction directly in the hub. This protects your entire drivetrain—your diff, prop shaft, and transmission won’t experience any extra wear and tear. Plus they maintain your stock suspension geometry, so you won’t overextend your axles.

Features:

• Cast aluminum housing

• Cool, quiet, precision-ground gears made from 9310 alloy billet steel

• 1.5 in. diameter 4340 hardened steel drive shaft

• Housings use gaskets or O-rings that don’t let anything through

• Universal hub fits all major bolt patterns

• Gear reduction reduces stress on your drivetrain

• Lighter than the competition
• Our housings are reinforced for gear retention and optimized for oil flow

• Advanced steel alloy backing plates are stronger than chromoly

• Enhance with Portal Blood —gear oil formulated for GDP Portals

• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates

• A sealed input gear and double-lipped output seal

• 100% sealing coverage throughout so you can forget about oil leaks

• Double-angular contact output bearings to prevent premature wear

• Roller idler and drive bearings to maintain perfect gear meshing

Kit Includes:

• 4 Assembled portal hub boxes complete with 9310 gears, seals, output shaft,
• gaskets, and thrust bearings

• 4 Universal hubs and precision-ground stainless steel slotted rotors with lugs

• 4 Specialized steel alloy backing plates

• 2 Steel caliper mounting plates

• 4 Caliper adapter plates

• Steering stop kit

• Extended brake lines

• All required hardware, including recessed castle nut socket

Note:

• 22” or larger wheel required. Therefore, it is not compatible with stock suspension and Requires aftermarket suspension

• Wheels cannot exceed 4.5” backspacing

• Wheels need to have a center hole of at least 3.25" (82.55 mm) or require a 1” wheel spacer

Installations Instructions:

• PGH8-3-37-451

Fitment:

• Honda Pioneer 500 : 2015+
